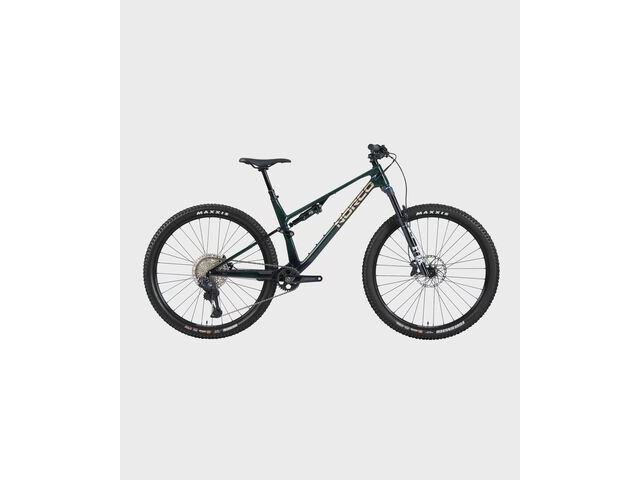

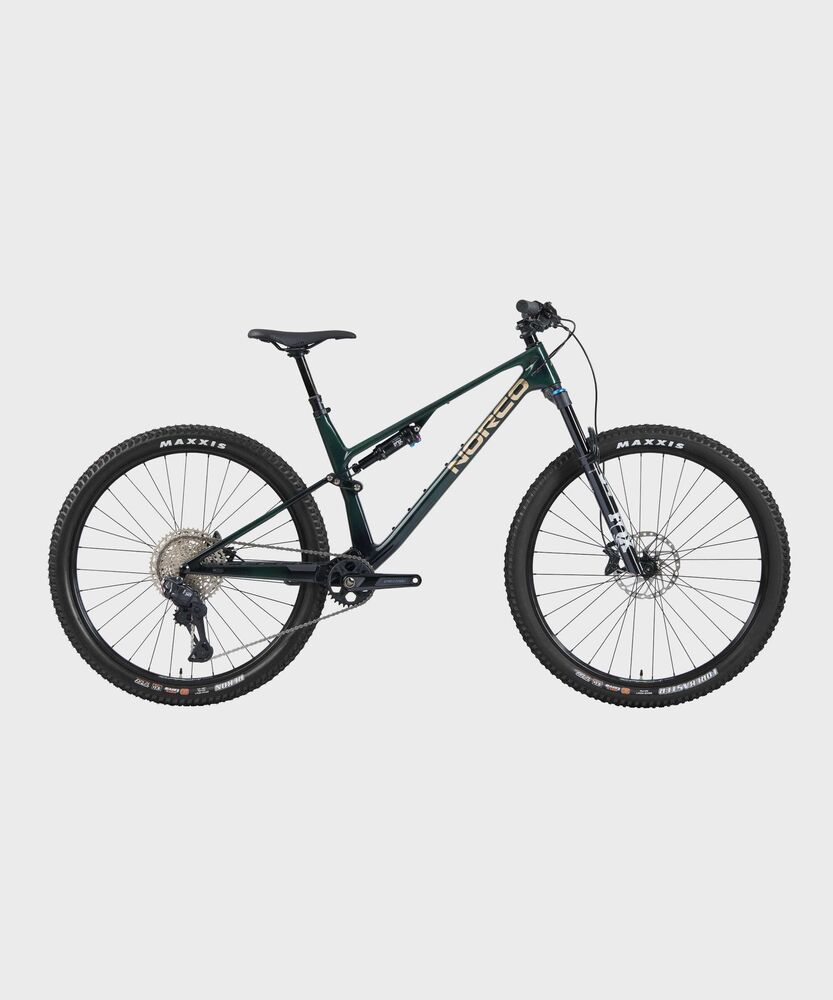

Norco Revolver FS C2 29" Bike Green

Revolver is the lightest full-suspension frame Norco has ever built with a surprising amount of capability. At the core of its efficiency is our advanced approach to a Flex-Pivot suspension design.

SPECIFICATION

Please note:Specifications are subject to change without notice.

GEOMETRY

All measurements are shown in millimetres.

		Size 1	Size 2	Size 3	Size 4	Size 5
	WHEEL SIZE	29" / 29"
	TRAVEL (MM FRONT / MM REAR)	130/120mm
	REACH	418	443	468	493	518
	STACK	589	598	607	616	625
HT	HEAD TUBE ANGLE	66.5
OS	FORK OFFSET	44
ST	SEAT TUBE LENGTH	392	434	453	477	491
ST	EFFECTIVE SEAT TUBE ANGLE	74.50	75	75.25	75.50
RC	REAR CENTRE LENGTH	422	426	430	434	438
RC	REAR CENTRE LENGTH AT SAG	422	426	430	434	438
BB	BOTTOM BRACKET DROP	32/32
BBH	BOTTOM BRACKET HEIGHT	342
HTT	HORIZONTAL TOP TUBE	581	606	631	655	680
WB	WHEELBASE	1135	1168	1201	1234	1267
SOH	STANDOVER	683	687	691	698	704
HT	HEAD TUBE LENGTH	90	100	110	120	130
	TRAIL	118
	RECOMMENDED SEATPOST DROP	120	120	150	170	200
	MAXIMUM POST INSERTION	220	220	250	270	300
	STEM LENGTH	50
	CRANK LENGTH	165	170	170	175	175
	TYRE SIZE	2.35" - 2.5"
	WATER BOTTLE COMPATIBLE	1 x 750ml	2x 620ml or 1 x 750ml	2x 620ml or 1 x 750ml	2x 750ml	2x 750ml
