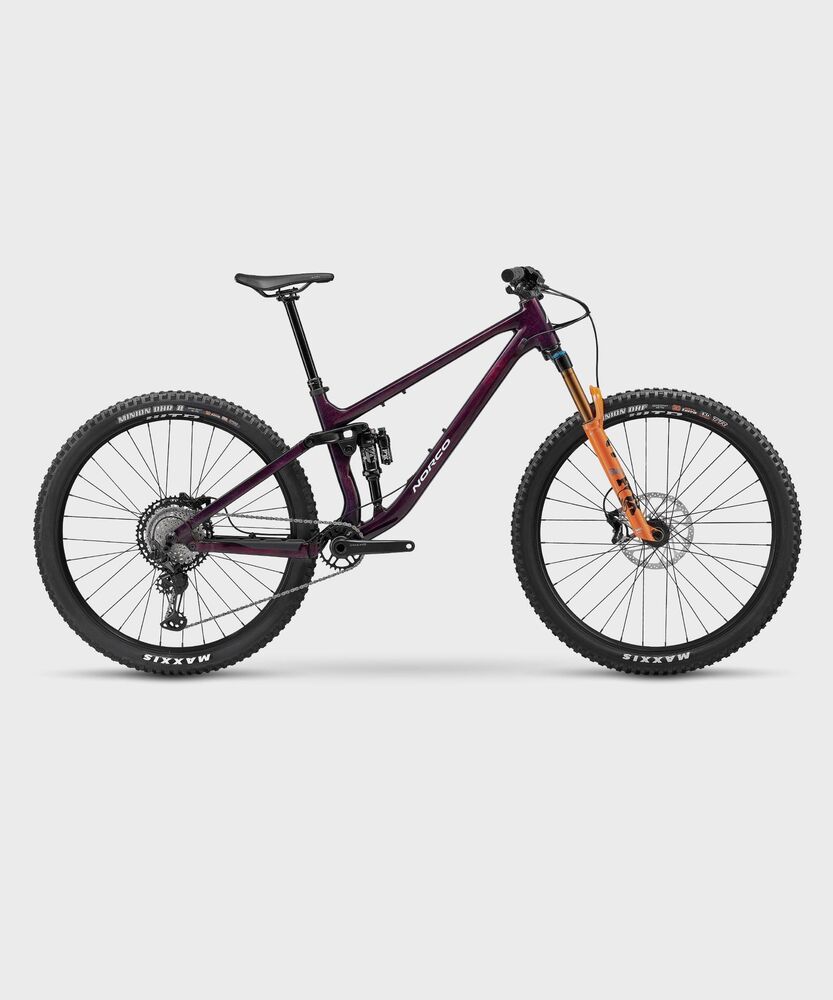

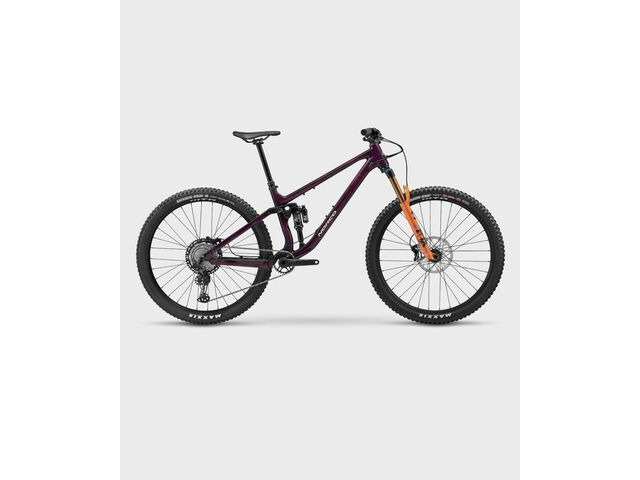

Norco Fluid FS A1 29" Bike Purple

Name: Norco Fluid FS A1 29" Bike Purple Purple XXL
Brand: Norco
SKU: 16553-36173
Price: 3599.0 GBP
Availability: OutOfStock

Norco

OUR PRICE £3599.00

Specifications

Enquiry

Reviews

Description

The Norco Fluid FS A1 is built to tackle whatever trail leads to becoming the rider you want to be. Named Pinkbike's Value Bike of the Year Vital MTB's Bike of the Year and most recently Bicycling Magazine's Best Value Trail Bike.

SPECIFICATION

FRAME	Aluminum Frame 130mm Travel UDH HangerlessInterface Compatible Ride Aligned™
FORK	Fox 36 SL Factory GRIP X 140mm 29" 1-1/8" x1.5" Alloy 110mm x 15mm Post Mount
REAR SHOCK	Fox Float X Performance Elite 210x50mmStandard 2 Pos Lever/LSC/LSR/LV EVOL
HEADSET	Sealed Bearing Tapered 1-1/8"- 1.5" (ZS44/28.6 \| ZS56/40)
GRIPS	WTB Wavelenght 140mm Length
HANDLE BAR	Norco 6061 DB Alloy barbore 35mm rise 25mm 5 degree sweep 800mm BB black anodised w/ Norco artwork
STEM	Norco 6061 Alloy barbore 35mm 6 degree rise 40mm BB black anodised no logo
SEAT POST	TranzX YSI134 34.9mm 150 (S1) -170mm (S2) -200mm (S3 S4 S5)
SEAT POST CLAMP	Norco Alloy Nutted Clamp
SADDLE	Fizik Terra Aidon X5
FRONT BRAKE	TRP Trail Evo 4 Piston Resin Pads
FRONT BRAKEROTOR	TRP RS01E 203mm 2.3mm Thickness 6 Bolt
REAR BRAKE	TRP Trail Evo 4 Piston Resin Pads
REAR BRAKEROTOR	TRP TR180 180mm 2.3mm Thickness 6-bolt
BRAKE LEVERS	TRP Trail Evo
SHIFTER REAR	Shimano Deore XT SL-M8100 I-Spec
REAR DERAILLEUR	Shimano XT RD-M8100 SGS 12sp
CASSETTE	Shimano XT CS-M8100 10-51 12sp
CHAIN	Shimano Deore XT CN-M8100 12sp
CRANKSET	Praxis G2 Cadet M24 30T
BOTTOM BRACKET	Praxis M24 BSA Threaded
FRONT HUB	Bear Pawls BMB-013 15x110mm Boost 32H 6-bolt
REAR HUB	Bear Pawls BMB-007 12x148mm Boost HG 32H 6-bolt
SPOKES/NIPPLES	Stainless Steel 14g
RIMS	WTB KOM Trail i30 TCS 2.0 30mm 32H 29" F/R
FRONT TYRE	Maxxis Minion DHF 3C Maxx Terra EXO 29" x 2.5" Folding
REAR TYRE	Maxxis Minion DHR II 3C Maxx Terra EXO+ 29" x 2.4" Folding

Please note:Specifications are subject to change without notice.

GEOMETRY

All measurements are shown in millimetres.

		Size S	Size M	Size L	Size XL	Size XXL
	WHEEL SIZE	29"
	TRAVEL (MM FRONT / MM REAR)	140/130mm
	REACH	420	450	480	510	540
	STACK	617	626	635	644	653
HT	HEAD TUBE ANGLE	65
OS	FORK OFFSET	44
ST	SEAT TUBE LENGTH	360	390	410	460	510
ST	EFFECTIVE SEAT TUBE ANGLE	76	76.3	76.7	77	77.3
RC	REAR CENTRE LENGTH	425	430	435	440	445
BB	BOTTOM BRACKET DROP	30
BBH	BOTTOM BRACKET HEIGHT	348
HTT	HORIZONTAL TOP TUBE	574	602	630	659	687
WB	WHEELBASE	1166	1205	1245	1284	1323
SOH	STANDOVER	678	690	699	736	767
HT	HEAD TUBE LENGTH	110	120	130	14	150
	TRAIL	128
	RECOMMENDED SEATPOST DROP	150	170	200	200	200
	MAXIMUM POST INSERTION	250	270	300	300	330
	STEM LENGTH	40
	CRANK LENGTH	175
	TYRE SIZE	2.4" - 2.6"
	WATER BOTTLE COMPATIBLE	1 x 750ml	1 x 750ml	1 x 750ml	1 x 750ml	1 x 750ml + 1 x 620ml

As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
